SB-351A6 Profiler

SOLBOT's temperature curve measuring instrument developed specifically for automatic soldering machines.

Wave soldering machine Temperature Profiler SB-351A6

Measure the temperature curve of the wave soldering pot, check the smoothness and solder dipping time, and use it as the basis for the adjustment of the wave solder equipment to get the best soldering result.

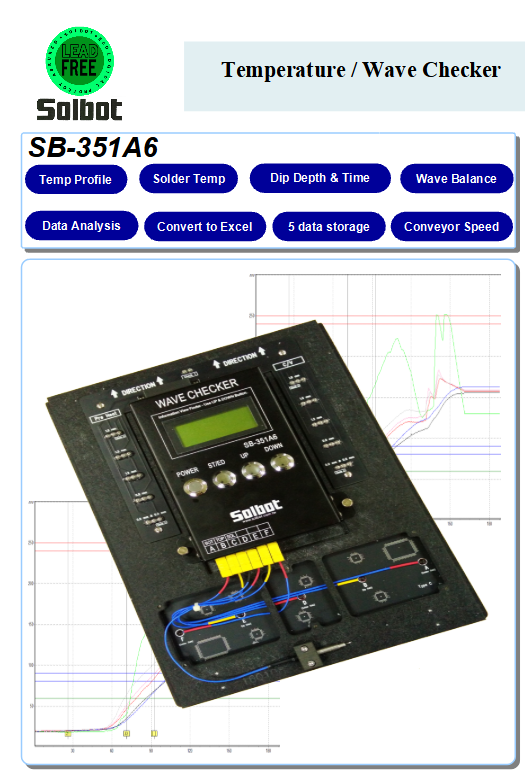

Model: SB-351A6 Wave soldering machine Temperature Profiler SOLBOT
SB-351A6

Feature:

  • PCB temperature profile
  • Solder pot temperature.
  • depth and time of solder dipping.
  • Wave level of solder pot.
  • Conveyor speed.
  • Measurement data analysis
  • Data convert to Excel.
  • 5 sets data storage.

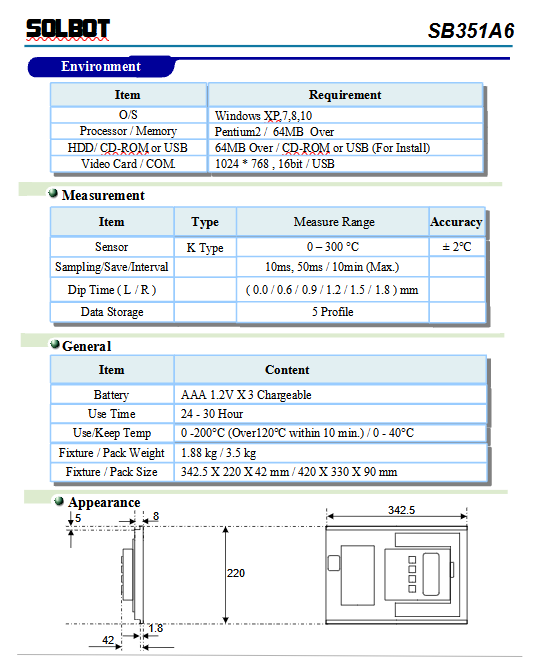

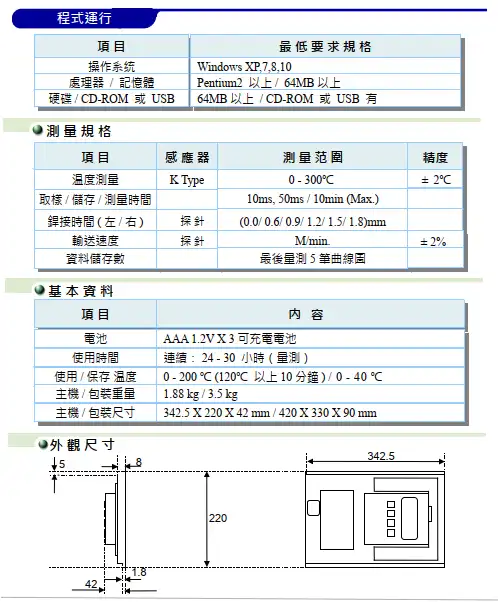

Specification and overview-SB-351A6

SOLBOT: SB-351A6_Spec Temp Profiler
SB-351A6_Spec Temp Profiler

All specifications are subject to change without notice due to improvements in performance.
