Point or Multi Point Soldering Device

Suitable for partial soldering of multi-layer boards or maintenance of parts remove (map wave solder pot).

Model of Point or Multi Point Soldering Device

  • 1. R600
  • 2. R168

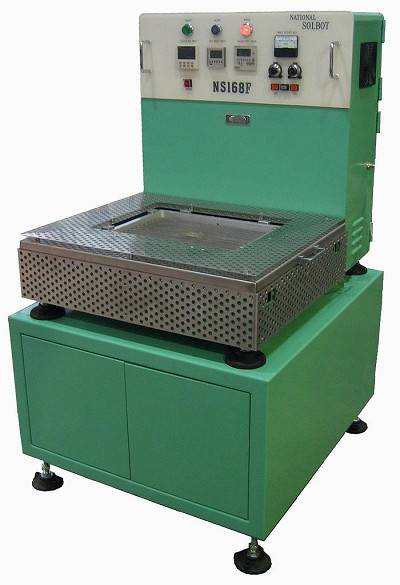

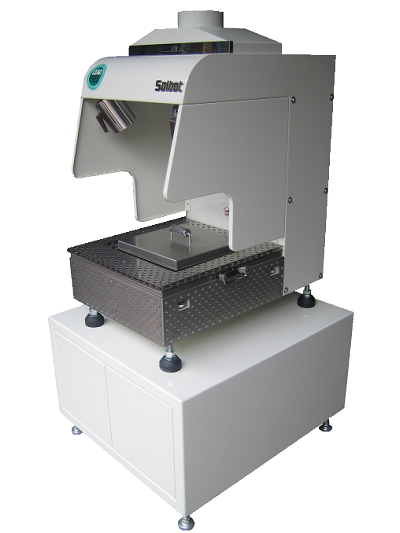

  • 3. NS168
  • 4. NS120

Suitable for local soldering or part replacement, special fixtures need to be made. All suitable for lead-free processes.

Feature
Specification
Outline

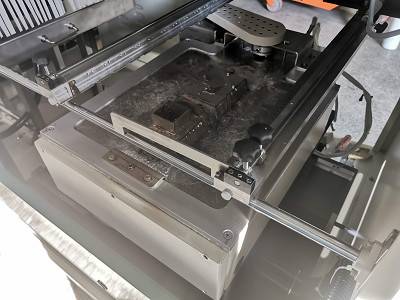

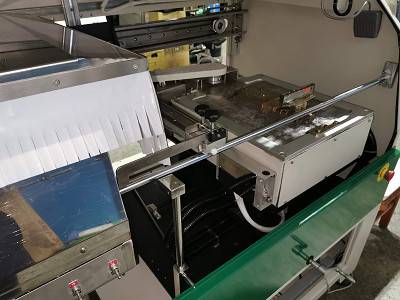

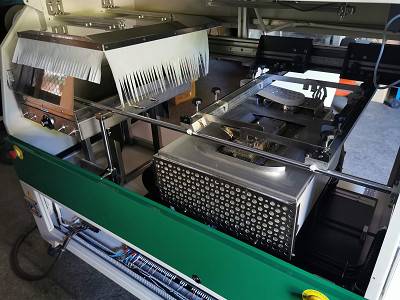

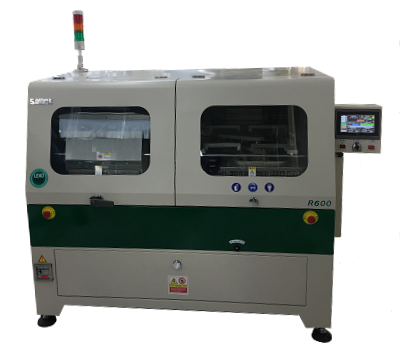

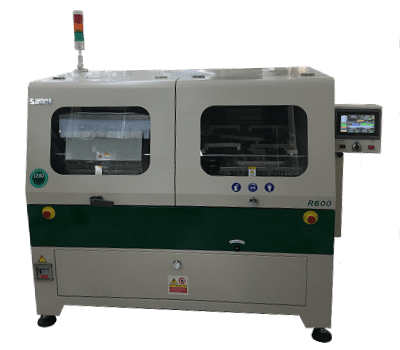

R600-Preheater & Point soldering pot

  • No seams and welds of cast iron solder pot.
  • PID+SSR temperature controller.
  • Preheat time and dipping time are adjustable.
  • The transfer pallel transports smoothly and the speed is adjustable.
  • The solder pot is automatically up and down according to the process.
  • Dual over-temperature safety device.
  • Leakage breaker.
  • 3-year warranty for solder pot and Non-consumable parts 1-year warranty.
  • Optional
    • Fixture

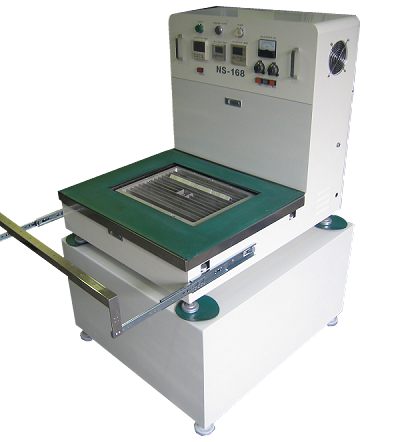

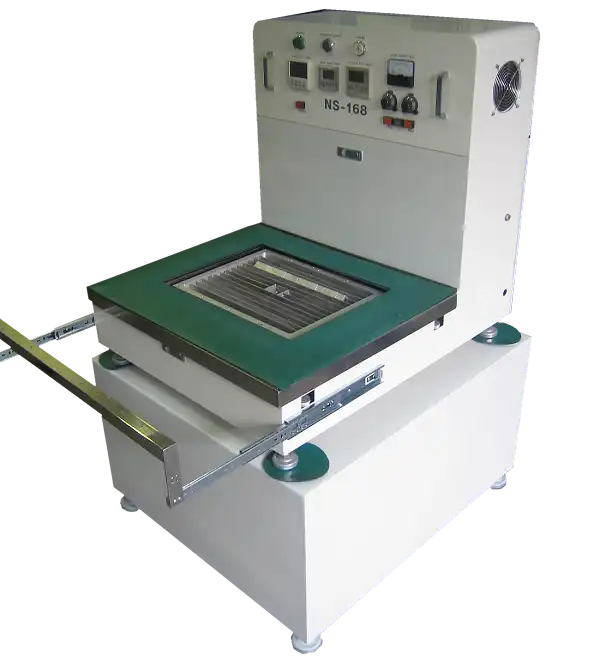

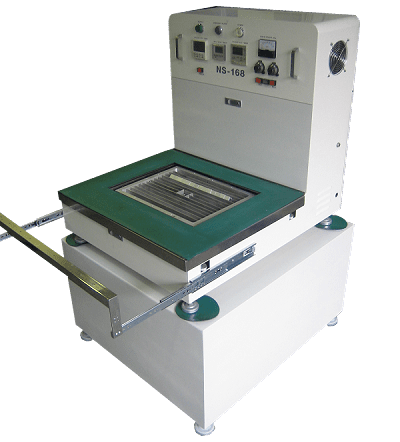

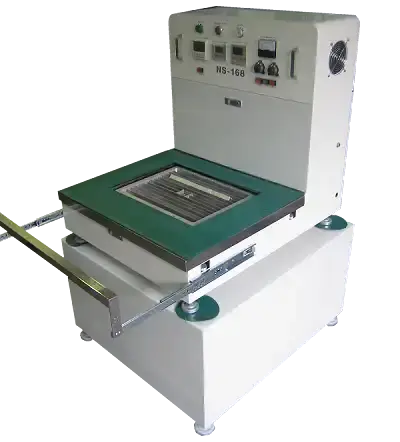

SOLBOT:NS168-3040 Multi point wave soldering pot

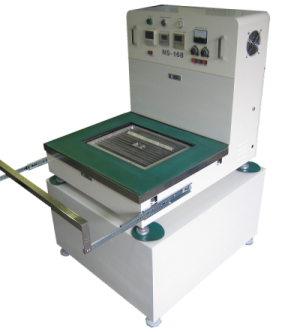

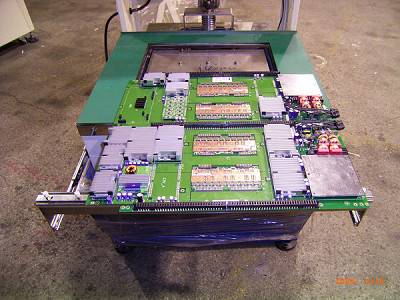

NS168-3040 Multi point wave soldering pot

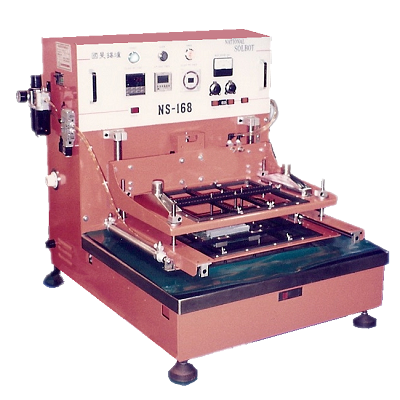

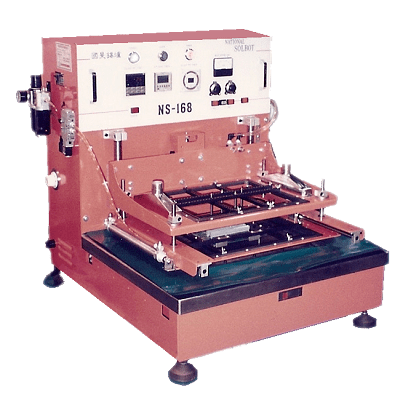

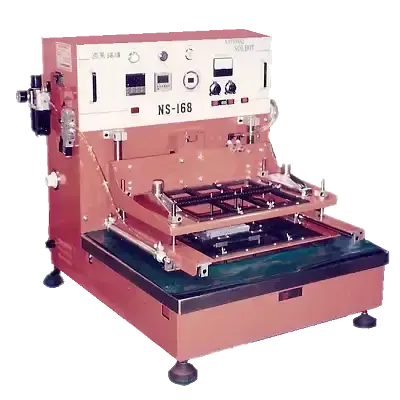

NS168– Multi point soldering pot

  • No seams and welds of cast iron solder pot.
  • PID+SSR temperature controller.
  • Preheat and dipping time adjustable.
  • Dual over-temperature safety device.。
  • Leakage breaker.
  • 3-year warranty for solder pot and Non-consumable parts 1-year warranty.
  • Optional
    • Fixture

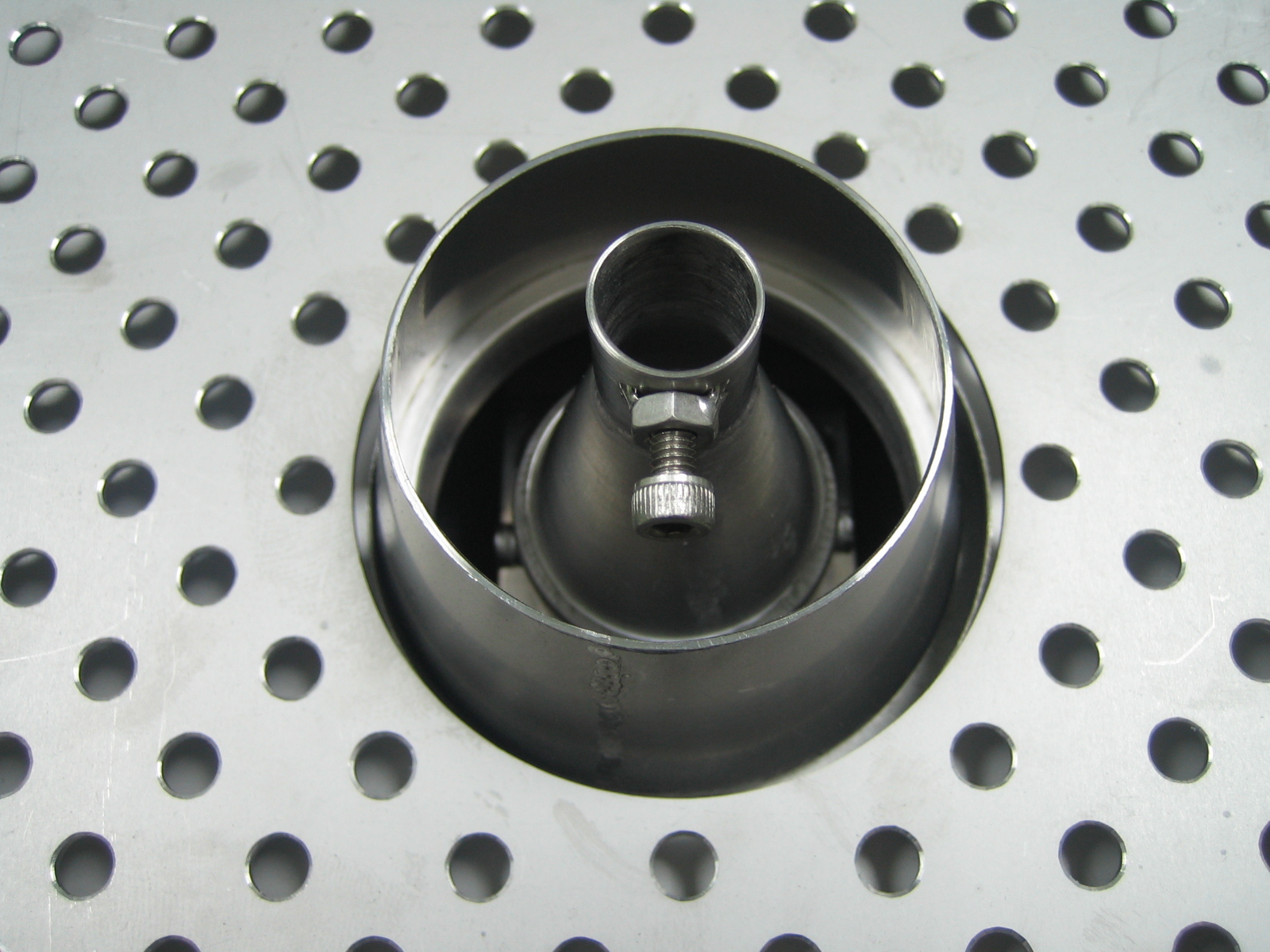

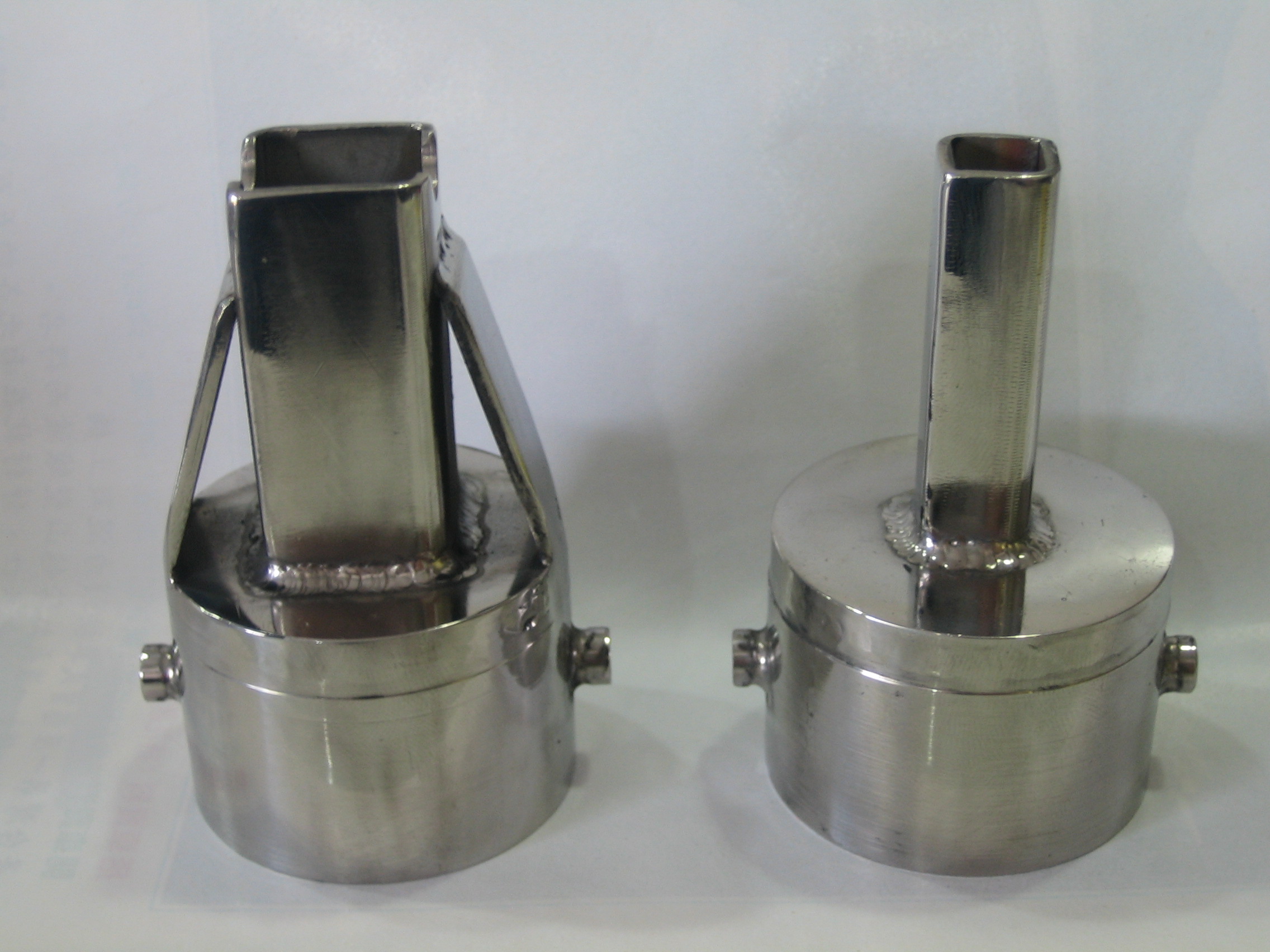

SOLBOT Nozzle for point soldering pot
SOLBOT Nozzle for point soldering pot
SOLBOT Nozzle for point soldering pot
SOLBOT Nozzle for point soldering pot

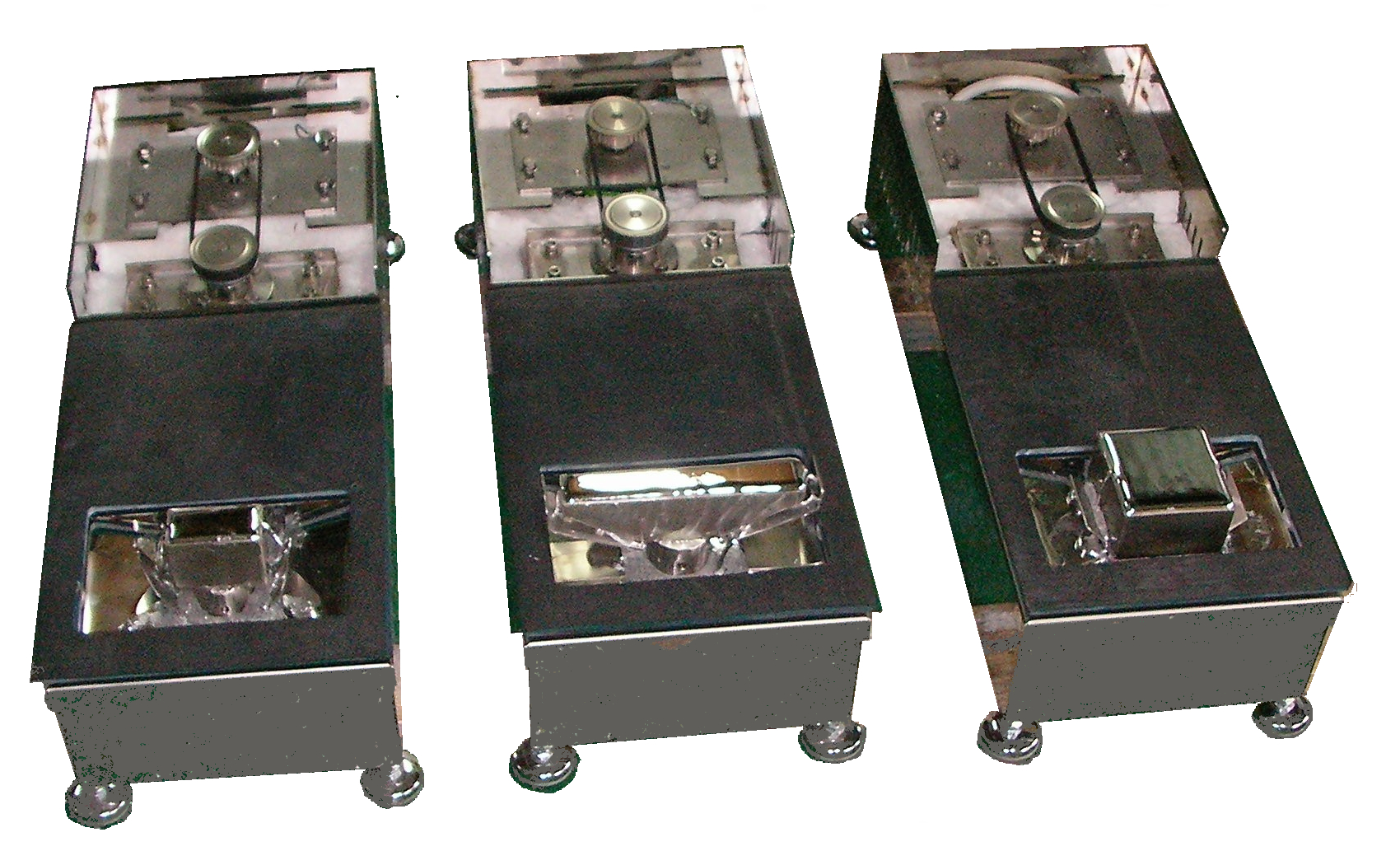

SOLBOT-NS120 Point soldering pot
SOLBOT-NS120 Point soldering pot

NS120-Point soldering pot

  • No seams and welds of cast iron solder pot.
  • Nozzle changeable.
  • PID+SSR temperature controller.
  • Dipping time adjustable.
  • Over-temperature automatic power-off.
  • Leakage breaker.
  • 3-year warranty for solder pot and Non-consumable parts 1-year warranty.
  • Optional
    • Nozzle

SOLBOT Products

For more information，Please Contact SOLBOT
